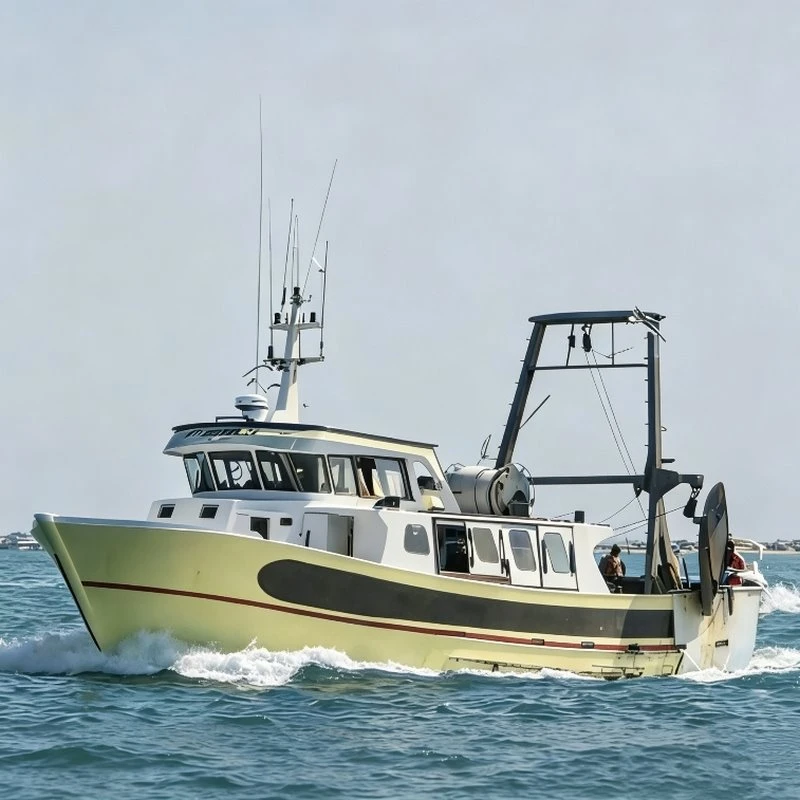

Peb cov txhuas hauv qab trawler yog lub nkoj nuv ntses kev cai ua los ntawm 5083-H116 marine aluminium-magnesium alloy. Nws yog lub hom phiaj-engineered rau ntug hiav txwv dej thiab offshore hauv qab trawling ua haujlwm. Piv nrog rau cov pa nkoj nuv ntses, lub teeb yuag txhuas lub cev no txo cov roj noj thiab tshem tawm lub nra ntawm kev saib xyuas tsis tu ncua.
Peb tsim lub qhov ntev ntawm 6 m txog 50 m. Txhua lub nkoj tuaj yeem raug kho kom haum raws li cov cai hauv zos nuv ntses, thaj chaw nuv ntses thiab cov khoom siv hauv nkoj. Nws txhawb nqa ib leeg lossis ob lub hauv qab trawling, nrog kev sib xyaw ua ke hydraulic winches thiab insulated ntses tuav rau ntau hnub nuv ntses voyages.
Pom zoo & Tsis pom zoo siv
Pom zoo rau:
- Cov tuam txhab nuv ntses thiab cov tswv nkoj ua haujlwm ntawm ntug dej hiav txwv thiab ze ntug hiav txwv trawl fisheries
- Cov neeg yuav khoom tab tom nrhiav rau cov nkoj nuv ntses uas tsis tshua muaj nqi rau 1-14 hnub mus ncig
- Tej yaam num yuav tsum tau ntawv pov thawj export xws li DNV, CE los yog CCS
- Cov neeg ua haujlwm ua haujlwm hauv qhov dej ntiav ntiav thiab cov chaw nuv ntses reef
Tsis pom zoo rau:
- Kev nuv ntses ntev-ntev-dej hiav txwv yam tsis muaj kev txhawb nqa lub nkoj thiab kev faib dej hiav txwv tag nrho
- Cov neeg yuav khoom nrog kev txwv nyiaj txiag nruj uas tsis tuaj yeem them tus nqi marine txhuas cov nqi
Hull Kev Tsim Kho & Hauv qab Trawling System
Lub hull thiab superstructure siv high-zog 5083-H116 aluminium alloy. Qhov sib sib zog nqus-V keel txhim kho kev ruaj ntseg hauv cov ntug dej hiav txwv ntxhib, thaum lub nkoj ntiav tso cai rau lub nkoj nkag mus rau qhov chaw nuv ntses ntiav uas cov nkoj hnyav tsis tuaj yeem ncav cuag. Aluminium's natural corrosion kuj txo cov xim mus sij hawm ntev thiab ua haujlwm tu.
Lub pob trawl suav nrog hnyav-lub luag haujlwm hydraulic winches thiab net tuav iav kom du net xa thiab rov qab. Lub self-draining anti-slip ua hauj lwm lawj los nrog kev ruaj ntseg railings. Lub wheelhouse nta panoramic qhov rais rau tag nrho navigation visibility.
Onboard cia muaj xws li configurable insulated ntses tuav. Koj tuaj yeem xaiv cov chav txias txias (0-4 degree) lossis qhov tob tob hauv qhov txias txias xws li -25℃txog -60 degree. Independent dej tshiab tso tsheb hlau luam thiab bilge & hluav taws tua hluav taws yog haum raws li tus qauv rau kev nyab xeeb.
Cov khoom siv txheem & kev hloov kho tshiab
Cov cuab yeej txheem
- Hydraulic hauv qab trawl winch thiab net tuav los ua ke
- Insulated chilled ntses tuav
- Anti-slip self-draining ua hauj lwm lawj, perimeter kev ruaj ntseg railings
- Tsis siv neeg bilge twj tso kua mis thiab ruaj hluav taws tua hluav taws system
- Basic teeb pom kev zoo thiab lub ntsiab hluav taws xob system
Kev hloov kho tshiab
- Deep-freeze fish storage cabins
- Flybridge tswj chaw nres tsheb
- Ntses nrhiav, ncha suab nrov, GPS, AIS, VHF xov tooj cua, marine radar, ntsuas qhov tob
- Cov roj loj dua thiab cov tso dej tshiab rau kev ua siab ntev ntev
- Kev cai lub ntsiab diesel cav thiab auxiliary generator poob lawm
- Cov ntses nyob hauv lub tank rau cov khoom noj khoom haus muaj nqi siab
Cov txiaj ntsig tseem ceeb
1. Lub teeb yuag, roj txuag lub cev
Kev tsim kho aluminium txo qis lub nkoj hnyav thiab luag hauv hiav txwv. Qhov no txo cov roj hlawv thaum txhua qhov kev mus ncig thiab txo cov nqi khiav haujlwm txhua xyoo.
2. Muaj zog corrosion thiab cuam tshuam tsis kam
5083-H116 marine aluminium tuav zoo toughness nyob rau hauv qis dej hiav txwv kub. Nws tiv taus seawater corrosion thiab absorbs cuam tshuam thaum tiv tauj reefs lossis underwater obstacles.
3. Kev saib xyuas tsis tu ncua qis dua
Tsis zoo li steel hulls, aluminium tsis xav tau rov qab los tiv thaiv xeb. Kev tswj xyuas kom raug, lub neej ua haujlwm ntawm lub nkoj no tuaj yeem ncav cuag 25 xyoo.
4. Kev hloov kho yooj yim
Peb kho lub nkoj loj, trawl winch load, tub yees muaj peev xwm, tank qhov ntau thiab tsawg thiab navigation instruments kom haum rau koj txoj kev nuv ntses thiab cov cai hauv zos.
5. ruaj khov trawling kev ua tau zoo
Qhov sib sib zog nqus-V hull minimizes dov thaum towing nets. Cov ntses loj tuav thiab tuav cov nets uas siv tau los pab txhawb nqa cov khoom txhua hnub thiab txo qis kev ua haujlwm ntawm tes.
Main Application Scenarios
1. ntug dej hiav txwv hauv qab trawling rau cw, flatfish, squid thiab crabs, haum rau luv luv 1-3 hnub nyob ze ntug hiav txwv nuv ntses voyages
2. Offshore tob- hiav txwv trawling tsom cod, halibut thiab hiav txwv crabs; nruab nrog cov tub yees txias los txhawb 5-10 hnub sib law liag ntawm qhib- dej ua haujlwm
3. Estuarine thiab reef nuv ntses qhov chaw nrog ntsev thiab dej tshiab
4. High-nqi nuv ntses rau cov lobsters nyob, prawns thiab crabs muab rau cov khw muag khoom noj qab haus huv zoo
5. Lub nkoj soj ntsuam cov khoom siv nuv ntses haum nrog cov khoom siv saib xyuas dej rau kev ntsuam xyuas cov khoom hauv hiav txwv
6. Pab saib xyuas thiab tswj lub nkoj rau cov neeg nuv ntses hauv zos thiab ntug dej hiav txwv tswj xyuas
7. Ua tau nrog ntau yam khoom siv nuv ntses nrog rau cov trawl nets, gill nets thiab cage traps
Basic Parameter
|
Ntev |
19.9 m |
Dav |
4.26 m |
|
Qhov tob |
1.86 m |
Kev khiav tawm |
90 t |
|
Khoom siv |
Al-Mg Alloy 5083-H116 |
Cov neeg coob |
3 cov neeg |
Customization, Lead Time & Delivery
Hull ntev tuaj yeem hloov kho los ntawm 6 m txog 50 m. Peb kho lub trawl system, tub yees, tank peev xwm thiab lub zog pob raws li koj lub hom phiaj kev lag luam marine kev cai.
Lub Sijhawm Ua Haujlwm Ntau Lawm
Me me ntug hiav txwv trawlers (6–18 m): kwv yees . 35 hnub ua haujlwm
Medium offshore trawlers (18-30 m): 60-90 hnub ua haujlwm
Large ocean‑going trawlers (>30 m): 120-180 hnub ua haujlwm
Lub sijhawm caij nyoog yog nyob ntawm koj qhov kev teeb tsa tag nrho thiab cov ntawv pov thawj uas yuav tsum tau ua.
Kev xa khoom & Tom qab-Kev them nyiaj yug muag
Cov nkoj me yog thauj los ntawm cov tsheb thauj khoom hnyav. Cov nkoj loj tuaj yeem xa tuaj raws li lub nkoj thauj khoom. Peb pab neeg ua haujlwm tubrog nkoj tuaj yeem muab kev pabcuam rau ntawm qhov chaw, kev pabcuam hauv hiav txwv thiab kev cob qhia neeg coob tomqab nkoj tuaj txog.
Certifications & Quality Assurance
Txhua aluminium hauv qab trawler tuaj nrog tag nrho cov ntaub ntawv soj ntsuam thiab cov ntaub ntawv siv.
- Cov ntaub ntawv pov thawj: DNV / CCS pom zoo 5083 marine aluminium phaj
- Kev faib cov nkoj: CCS rau kev nuv ntses hauv tsev; DNV, BV lossis CE muaj rau kev xa tawm
- Factory certification: ISO 9001 kev tswj xyuas zoo
- Vuam tshuaj ntsuam xyuas: Cov ntaub ntawv ntsuas tsis muaj kev puas tsuaj rau tag nrho cov welds tseem ceeb
- Ua tiav cov cuab yeej kev nyab xeeb daim ntawv pov thawj rau kev txuag lub neej, kev tiv thaiv hluav taws thiab kev tiv thaiv kev ua qias tuaj
FAQ
Q: Puas yog aluminium hull kho nyuaj tom qab reef kev puas tsuaj?
A: Aluminium vuam tshuab yog dav paub tab nyob rau hauv lub regional shipyards. Kev kho hauv zos tuaj yeem ua tau yooj yim ntawm tus nqi qis, txuag nyiaj ntau dua li hloov cov khoom siv fiberglass hull.
Q: Dab tsi yog qhov siab tshaj plaws offshore endurance ntawm no trawler?
A: Sailing ntau nyob ntawm cov roj tank thiab qhov chaw cia txias. Txheem ntug hiav txwv cov nkoj txhawb nqa txuas ntxiv mus rau 3 mus rau 5 hnub. Cov qauv haum nrog txuas ntxiv roj tso tsheb hlau luam thiab sib sib zog nqus-txias cabins tuaj yeem ua tiav 10 mus rau 14 hnub ntawm kev tsis- nres nuv ntses offshore yam tsis muaj refueling.
Q: Koj lub tuam txhab puas tuaj yeem pab txhawb kev tsim kho xws li lub cev ntev, trawling system, thiab lub tub yees?
A: Peb muab cov kev pabcuam customized ua tiav. Qhov ntev ntawm lub nkoj yog 6 meters mus rau 50 meters; Raws li cov neeg siv khoom thiab cov kev cai nuv ntses hauv zos nrog rau cov kev cai ntawm qhov chaw nres nkoj, cov khoom thauj ntawm lub trawling winch, qhov kub thiab ntim ntawm chav tub yees, tus naj npawb ntawm cov khoom thauj, qhov loj ntawm lub tank dej nyob, thiab cov khoom siv navigation tuaj yeem hloov kho.
Q: Lub voj voog ntau lawm ntev npaum li cas ntawm qhov txhuas no -cov trawler hauv qab?
A: Me me ntug hiav txwv trawlers (6-18 meters): kwv yees li 35 hnub ua haujlwm; nruab nrab- dej hiav txwv loj- mus trawlers (18–30 meters): 60–90 hnub; dej hiav txwv loj- mus trawlers (ntau tshaj 30 meters): 120–180 hnub. Lub sijhawm tshwj xeeb nyob ntawm qhov nyuaj ntawm qhov chaw teeb tsa.
Q: Koj puas tuaj yeem muab qhov rooj - rau - qhov rooj tsheb thauj mus los lossis kev taw qhia tawm mus txawv tebchaws?
A: Peb muaj ntau yam kev xaiv xa khoom: cov nkoj me me yog thauj los ntawm cov tsheb thauj khoom hnyav hauv av, thaum lub nkoj loj thauj los ntawm nkoj thauj khoom thauj; peb cov kws tshaj lij nkoj engineering pab neeg tuaj yeem mus txawv teb chaws los pab nrog kev tshaj tawm, khoom siv debugging, thiab kev cob qhia neeg ua haujlwm.
